JAZO EDGE ALU HF-66/66R - FRONT

Description:

The JAZO EDGE HF-60/66 aluminum ventilation grille with front mounting consists of a frame with a sheet metal profile, single horizontal blades (louvers) and a leakage sill. The size of the safety grille is configurable and has a net passage of 66%.

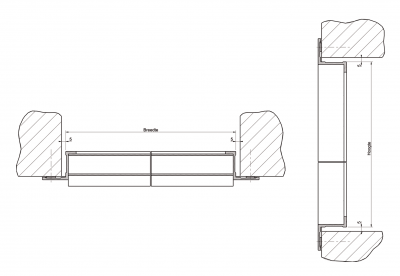

Each vane is welded at the front and/or rear, creating one metallic whole. This means it meets the requirements for the earthing of technical rooms and one earth wire is sufficient. The installation depth is 95.5 mm and mounting materials are included. There are various types of edging profiles and adjustable frames for a variety of installation options. This makes installation possible in every architectural detail.

Aluminum safety ventilation grilles High Flow are specially designed for technical areas, such as emergency power generator (NSA), combined heat and power (CHP), engine rooms, boiler houses and compressor buildings, where special requirements are imposed on air flow, low air resistance and rain resistance. This ensures that people, animals, equipment and machines are optimally protected.

Specifications:

• Maintenance-free
• One metallic whole for grounding
• Vandal-resistant and condensation draining

Surface treatment:

Equipped with a sustainable, environmentally friendly pre-treatment. Powder coating in RAL color of your choice.

Do you need specific advice regarding access and shielding of technical rooms? Please feel free to contact us without obligation. You can also contact us for all your ventilation calculations.
